Input Type XLR
Mic 4.7KΩ
Line 20KΩ
Output
Type XLR
Mic 300Ω
Line 200?
MAX Output Level >17dB
MAX Gain >70dB
Frequency Respond 35~20,000 Hz
THD% <0.06%
Signal-to-noise radio >70 dB
Input Attenuation -50dB
Phantom Power +48V
Mic In Attenuation -10dB / -20dB
Mic Attenuation -10dB / -15dB / -20dB
Output Attenuation -50dB
Voltage Output +4VDC ±0.3V
Power Supply 18VDC, 1A
Power Consumption 13.5W
Fuse T0.5AE 250V (Slow-Blow)
- Home Theatre Systems / Club Sound Experience at Home
- Restaurants / Cafe / Gym " Sound System Set Up "
- DJ Gear
- Live Sound
- Lighting
- Commercial
- Studio
- Accessories
- Education Institution
- 100% Original Product Guarantee from DJ Pundits.
- COD available in select areas. Put your pin code in the shipping calculator to see COD availability.
- Secure shopping with all major Indian credit cards, NEFT, Cheque payments accepted.
- The products you buy are sourced carefully for you at the lowest price
Sale

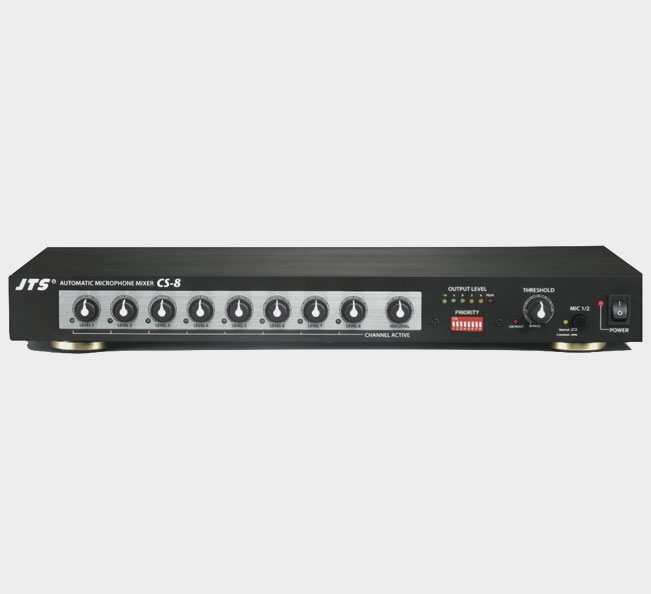

JTS CS-8 AUTOMATIC MIXER
Description: Enables effective managing of multi-microphone installations including corporate boardrooms, conference rooms, government builds, houses of worship, classrooms.
Warranty : 1 Year
Offer Price : 17,580.00
M.R.P : 20,100.00
WE ACCEPT THE FOLLOWING
Daisy-chain with unlimited number of the mixer
Three operation modes: one-channel-at-a time, all active or override
Switchable inputs accept microphones or line level devices
Switchable output levels between mic. and line level
Individual gain control and phantom power for each channel
Last In stays on for continuous ambience sound
Control voltage provided to trigger external device such as speaker switching and camera switching
