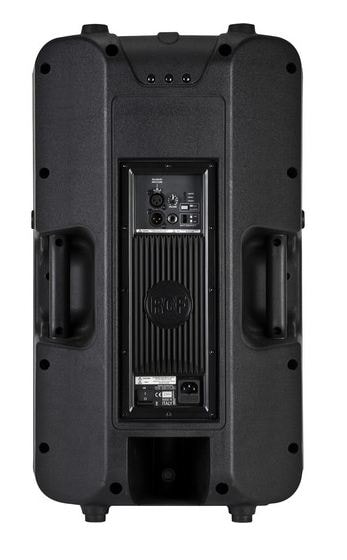

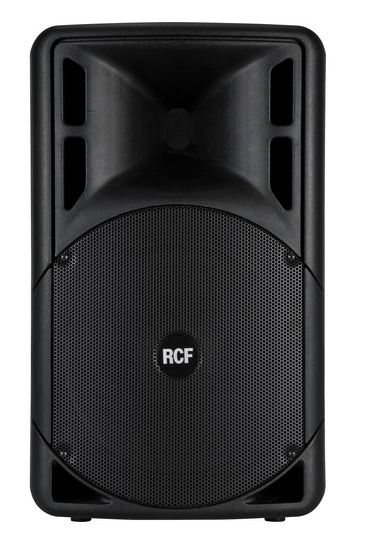

RCF ART315A
Frequency response: 45 - 20 Khz
Max SPL: 129 dB
Coverage angle: 90° x 60°
Compression driver: 1”
Woofer: 15”
Input signal (Impedance): bal/unbal
Input connector: jack/xlr
Output signal connector: xlr
Input sensitivity: -2 dBu / +4 dBu
Crossover frequencies: 1650 Hz
Protections: Thermal, RMS
Limiter: Fast limiter
Controls: Volume, EQ Shape, Mic/Line
Nominal power: 400 Watt
High frequencies: 100 Watt
Low frequencies: 300 Watt
Cooling: Convection
Cabinet: Composite PP
Hardware: 4 M10 flying points
Handles: 2 side, 1 top
Pole Mount / Cap: yes
Colour: Black

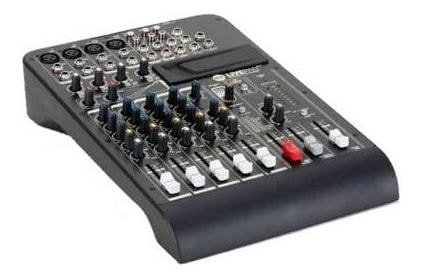

LIVEPAD 8CX
Frequency Response : 10Hz ÷ 55kHz
Total Harmonic Distortion (THD+N) : 0.03%%
Mic : 4
Gain range : 0dB ÷ -50dB
Low Cut : 75 HzHz
Phantom Power +48V : Yes
Mono Line : 2
Gain range : 15dB ÷ -35dB
Stereo Line : 3
2 Track : Yes
Stereo Return : 1
Main MIX : 1
Control Room : Yes
FX Send : 1
Phones : 1
2 Track : Yes
Single Control : 2
BANDS on MONO channels : 3
BANDS on STEREO channels : 2
FX : 1 POST
