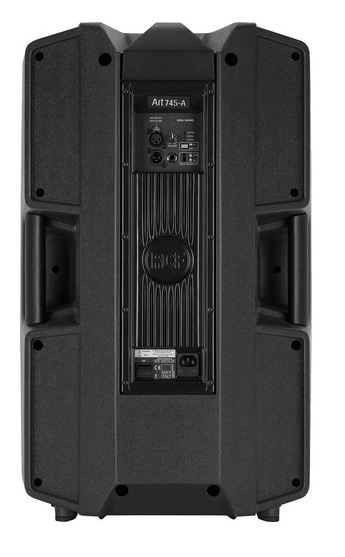

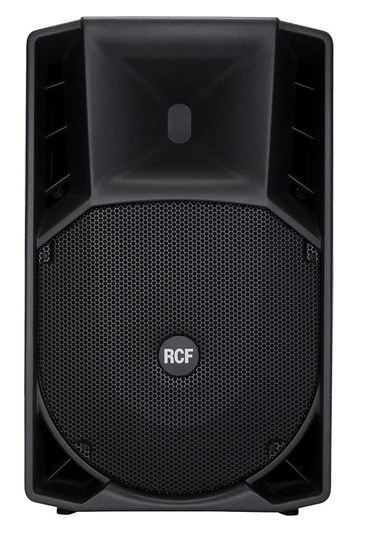

ART745A
Frequency response: 45 Hz- 20 Khz
Max SPL: 133 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°
Compression driver: 1.5” neo, 4” voice coil
Woofer: 15”neo, 3.5” voice coil
Input signal (Impedance): bal/unbal
Input/Output connector: Combo xlr-jack
Input sensitivity: -2 dBu / +4 dBu
Crossover frequencies: 650 Hz
Protections: thermal, RMS
Limiter: Soft limiter
Controls: Volume, EQ shape
Power supply: switching 700 Watt
High frequencies: D / 200 Watt
Low frequencies: D / 500 Watt
Cooling: convenction/forced
Connection: VDE
Cabinet: Composite PP
Hardware: 2 x flying p., pole mount
Handles: 1top, 2 on side
Pole mount cap yes
Colour: Black
LIVEPAD 8CX
Frequency Response : 10Hz ÷ 55kHz
Total Harmonic Distortion (THD+N) : 0.03%%
Mic : 4
Gain range : 0dB ÷ -50dB
Low Cut : 75 HzHz
Phantom Power +48V : Yes
Mono Line : 2
Gain range : 15dB ÷ -35dB
Stereo Line : 3
2 Track : Yes
Stereo Return : 1
Main MIX : 1
Control Room : Yes
FX Send : 1
Phones : 1
2 Track : Yes
Single Control : 2
BANDS on MONO channels : 3
BANDS on STEREO channels : 2
FX : 1 POST
