| Voltage | VAC100-240~, 50/60Hz |
| Current consumption | MAX 0.9A(100VAC) / 0.3A(240VAC) |
| DC supply to contribution units | ±15V |
| Line, telephone coupler and insertion in/outputs (unbalanced) | |
| Input sensitivity | -14dBV/+11dBV (nominal/maximum) |
| Input impedance | 33KΩ |
| Output level | -14dBV/+11dBV (nominal/maximum) |
| Output Impedance | 500Ω |
| Recorder in/output (unbalanced) | |
| Input sensitivity | -20dBV/+5dBV (nominal/maximum) |
| Input impedance | 47KΩ (for L & R channel) |
| Adjustment | -20dBV/+5dBV(nominal/maximum) |
| Output level | +0/-30dBV |
| Output Impedance | 500Ω |
| External microphone input (XLR(F) balanced) | |
| Input sensitivity | -56dBV |
| Adjustment. | +6dBV/-6dBV(nominal/maximum) |
| Phantom supply | 12V+/-1V, 2*680Ω (±2%) |
- Home Theatre Systems / Club Sound Experience at Home
- Restaurants / Cafe / Gym " Sound System Set Up "
- DJ Gear
- Live Sound
- Lighting
- Commercial
- Studio
- Accessories
- Education Institution
- 100% Original Product Guarantee from DJ Pundits.
- COD available in select areas. Put your pin code in the shipping calculator to see COD availability.
- Secure shopping with all major Indian credit cards, NEFT, Cheque payments accepted.
- The products you buy are sourced carefully for you at the lowest price
Sale

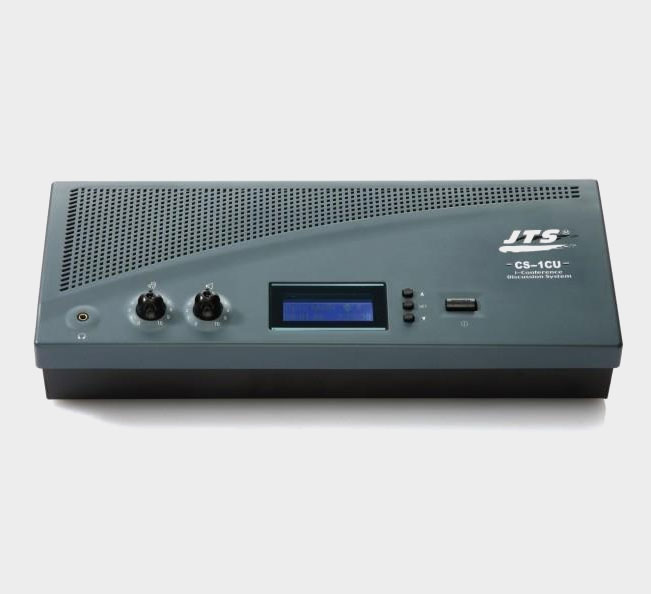

JTS CS-1CU ANALOG CONTROL UNIT
Description: Conference System - Control and Power Supply Unit
Warranty : 1 Year
Offer Price : 14,000.00
M.R.P : 16,500.00
WE ACCEPT THE FOLLOWING
The control unit is the center of the discussion system which controls the microphones of the chairman and delegate units as well as connects to other audio input and output. It also supplies the power for the CU itself, and up to 50 chairman and delegate units.
