Frequency Response - 74 Hz - 18 kHz ±3 dB / 43 Hz - 20 kHz -10 dB;
Nominal Dispersion - 100º H X 70º V @ -6 dB Points
Power Handling (IEC) Passive - 120 W continuous, 480 W peak;
Power Handling (IEC) 100V Line 120, 60, 30 W continuous;
Power Handling (IEC) 70 V line 120, 60, 30W continuous
Sensitivity - 90 dB (1 W @ 1 m),
Maximum SPL Passive - 111 dB continuous, 117 dB peak;
Maximum SPL 100 V line - 117, 114, 111 dB peak;
Maximum SPL 70 V line - 117, 114, 111, 105 dB peak
Impedance - 8 ohms;

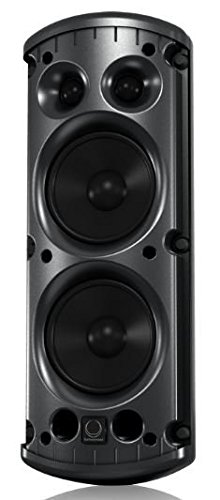

Components - 2 x 5" (127 mm) LF driver; 2 x 1" (25 mm) HF soft dome driver
Connectors - Screw terminal block; Wiring Input +VE, -VE;
Construction - Gas injected, glass-filled moulded ABS enclosure;
Grille - Powder-coated perforated steel;
Flying Hardware - M6 x 2points
