Frequency Response - 74 Hz - 20 kHz ±3 dB / 43 Hz - 20 kHz -10 dB;
Nominal Dispersion - 100º H X 70º V @ -6 dB Points,
Power Handling (IEC) Passive - 60 W continuous, 240 W peak;
Power Handling (IEC) 100V Line 60, 30, 15 W continuous;
Power Handling (IEC) 70 V line 60, 30, 15, 7.5, 3.75 W continuous
Sensitivity - 90 dB (1 W @ 1 m),
Maximum SPL Passive - 108 dB continuous, 114 dB peak;
Maximum SPL 100 V line - 114, 111, 108 dB peak; Maximum SPL 70 V line - 114, 111, 108, 105 dB peak
Impedance - 16 ohms;

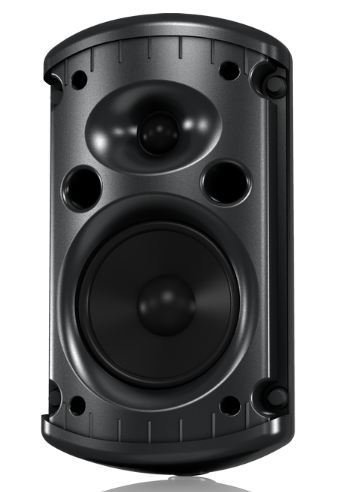

Components - 1 x 5" (127 mm) LF driver; 1 x 1" (25 mm) HF soft dome driver

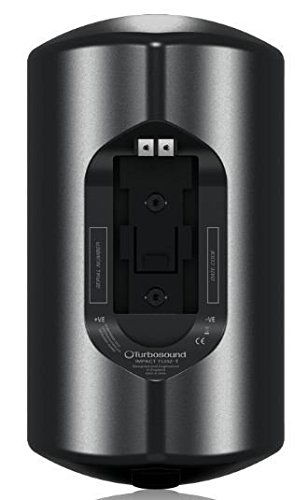

Connectors - Screw terminal block; Wiring Input +VE, -VE;
Construction - Gas injected, glass-filled moulded ABS enclosure;
Grille - Powder-coated perforated Zinc plated steel;
Flying Hardware - M6 x 2points
