• Discrete 312 preamp design with coupled CineMag Transformers
• 71db of gain
• Transformer selection provides both Steel and 50% Nickel CineMag output transformers for rying character
• Transformer bypass switch allows for removal of the output transformer from the circuit
• Discrete Opamp selection provides both the classic 1731(vintage) and 918(cleaner) style opamps. These are socketed/swappable with your choice of 2520 6 pin footprint opamps.
• Impedance switch labeled TONE to switch between 150 and 600 ohms input impedance
• Capacitor selection between Tantalum and Electrolytic for different characters
• 80hz hipass filter
• Polarity Reverse
• +48V phantom power
• Output attenuation allowing for saturation flexibility of both the opamps and transformers
• ¼" insert for the use of inline compressors, eq's etc..

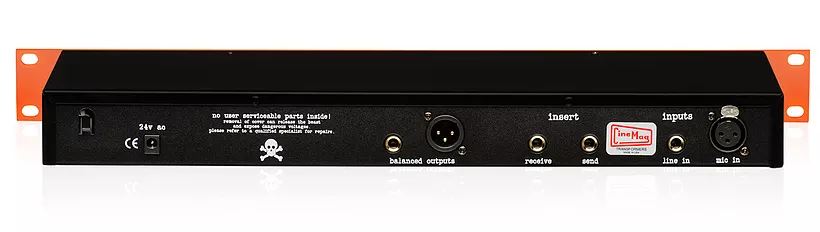

• Balanced XLR mic (front and back), balanced TRS line, and ¼" instrument inputs
• Balanced XLR and TRS outputs
• -20db Pad
• LED VU Meter
• 19" rackmountable
• External line-lump 24V AC power transformer for low noise
